  1. Input Plugins

exec

PrevioussyslogNextsample

Last updated 3 years ago

Was this helpful?

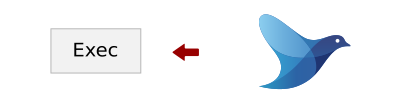

The in_exec Input plugin executes external programs to receive or pull event logs. It will then read TSV (tab-separated values), JSON or MessagePack from the standard output of the program.

You can run a program periodically or permanently. To run periodically, please use the run_interval parameter.

It is included in Fluentd's core.

Example Configuration

<source>
  @type exec
  command cmd arg arg
  <parse>
    keys k1,k2,k3
  </parse>
  <extract>
    tag_key k1
    time_key k2
    time_format %Y-%m-%d %H:%M:%S
  </extract>
  run_interval 10s
</source>

Plugin Helpers

Parameters

@type

The value must be exec.

command

type

default

version

string

required parameter

0.14.0

The command (program) to execute.

tag

type

default

version

string

required if extract/tag_key is not specified

0.14.0

The tag of the output events.

run_interval

type

default

version

time

nil

0.14.0

The interval time between periodic program runs. If not specified, command script runs only once.

read_block_size

type

default

version

size

10240

0.14.9

The default block size to read if parser requires partial read.

connect_mode

type

default

available values

version

enum

read

read/read_with_stderr

1.11.3

Control target IO:

  • read: Read logs from stdio

  • read_with_stderr: Read logs from stdio and stderr.

read_with_stderr is mainly for debug.

<parse> section

required

multi

version

false

false

0.14.9

Refer these for more details about parse section:

@type

type

default

version

string

tsv

0.14.9

Overwrites the default value in this plugin.

time_type

type

default

version

string

float

0.14.9

Overwrites the default value in this plugin.

time_key

type

default

version

string

nil

0.14.9

Overwrites the default value in this plugin.

estimate_current_event

type

default

version

bool

false

0.14.9

Overwrites the default value in this plugin.

<extract> Section

required

multi

version

false

false

0.14.9

time_type

type

default

version

string

float

0.14.9

Overwrites the default value in this plugin.

Use Cases

Monitor Load Averages

Here is a simple example to fetch load average stats on Linux systems. This configuration instructs Fluentd to read /proc/loadavg once per minute and emit the file content as events.

<source>
  @type exec
  tag system.loadavg
  command cat /proc/loadavg | cut -d ' ' -f 1,2,3
  run_interval 1m
  <parse>
    @type tsv
    keys avg1,avg5,avg15
    delimiter " "
  </parse>
</source>

This configuration emits events like this one:

2018-06-29 17:27:35.115878527 +0900 system.loadavg: {"avg1":"0.30","avg5":"0.20","avg15":"0.05"}

Real World Example: Scrape Hacker News Top Page

If you already have a script that runs periodically (say, via cron) that you wish to store the output to multiple backend systems (HDFS, AWS, Elasticsearch, etc.), in_exec is a great choice.

The only requirement for the script is that it outputs TSV, JSON or MessagePack.

Suppose that script is called hn.rb. Then, you can run it every 5 minutes with the following configuration:

<source>
  @type exec
  <parse>
    @type json
  </parse>
  tag hackernews
  command ruby /path/to/hn.rb
  run_interval 5m # don't hit HN too frequently!
</source>
<match hackernews>
  @type stdout
</match>

And if you run Fluentd with it, you will see the following output (if you are impatient, CTRL+C to flush the stdout buffer):

2017-12-08 14:19:33.160567411 +0900 hackernews: {"time":1512710373,"rank":1,"title":"Japan eyes startup visa program","points":160,"user_name":"benguild","duration":"4 hours ago  ","num_comments":0,"unique_id":"item?id=15875627","hiring_notice":false}
2017-12-08 14:19:33.160735378 +0900 hackernews: {"time":1512710373,"rank":2,"title":"Bookbinding: A Tutorial","points":46,"user_name":"jstrieb","duration":"2 hours ago  ","num_comments":0,"unique_id":"item?id=15876260","hiring_notice":false}
2017-12-08 14:19:33.160769125 +0900 hackernews: {"time":1512710373,"rank":3,"title":"My Quadriplegic Husband and Me","points":92,"user_name":"mooreds","duration":"4 hours ago  ","num_comments":0,"unique_id":"item?id=15875772","hiring_notice":false}
2017-12-08 14:19:33.160799115 +0900 hackernews: {"time":1512710373,"rank":4,"title":"Wall Street banks hit pause button on Bitcoin","points":16,"user_name":"tadasv","duration":"1 hour ago  ","num_comments":0,"unique_id":"item?id=15876497","hiring_notice":false}
2017-12-08 14:19:33.160824386 +0900 hackernews: {"time":1512710373,"rank":5,"title":"A Spectator Who Threw a Wrench in the Waymo/Uber Lawsuit","points":107,"user_name":"kynthelig","duration":"4 hours ago  ","num_comments":0,"unique_id":"item?id=15875685","hiring_notice":false}

Refer to the article for the basic structure and syntax of the configuration file.

See .

See .

For example, this scrapes the front page of and scrapes information about each post:

Of course, you can use Fluentd's many output plugins to store the data into various backend systems like , , , , etc.
